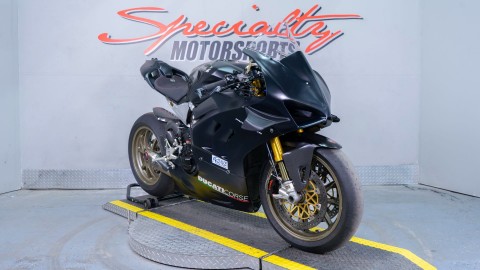

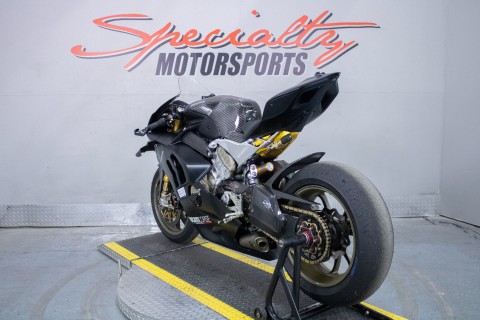

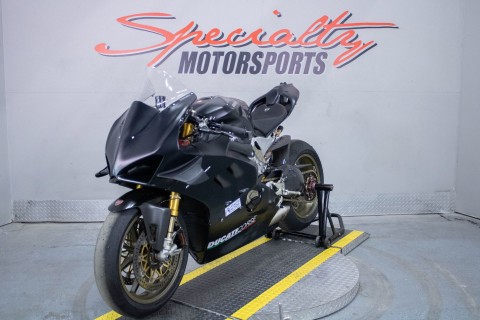

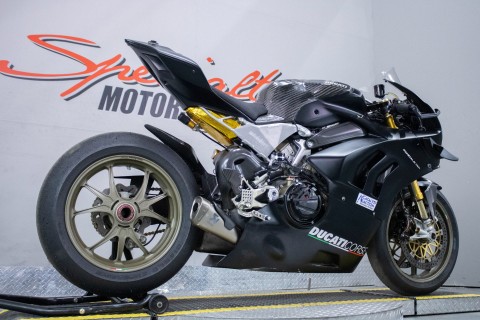

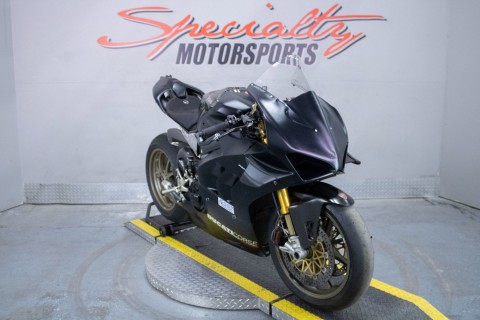

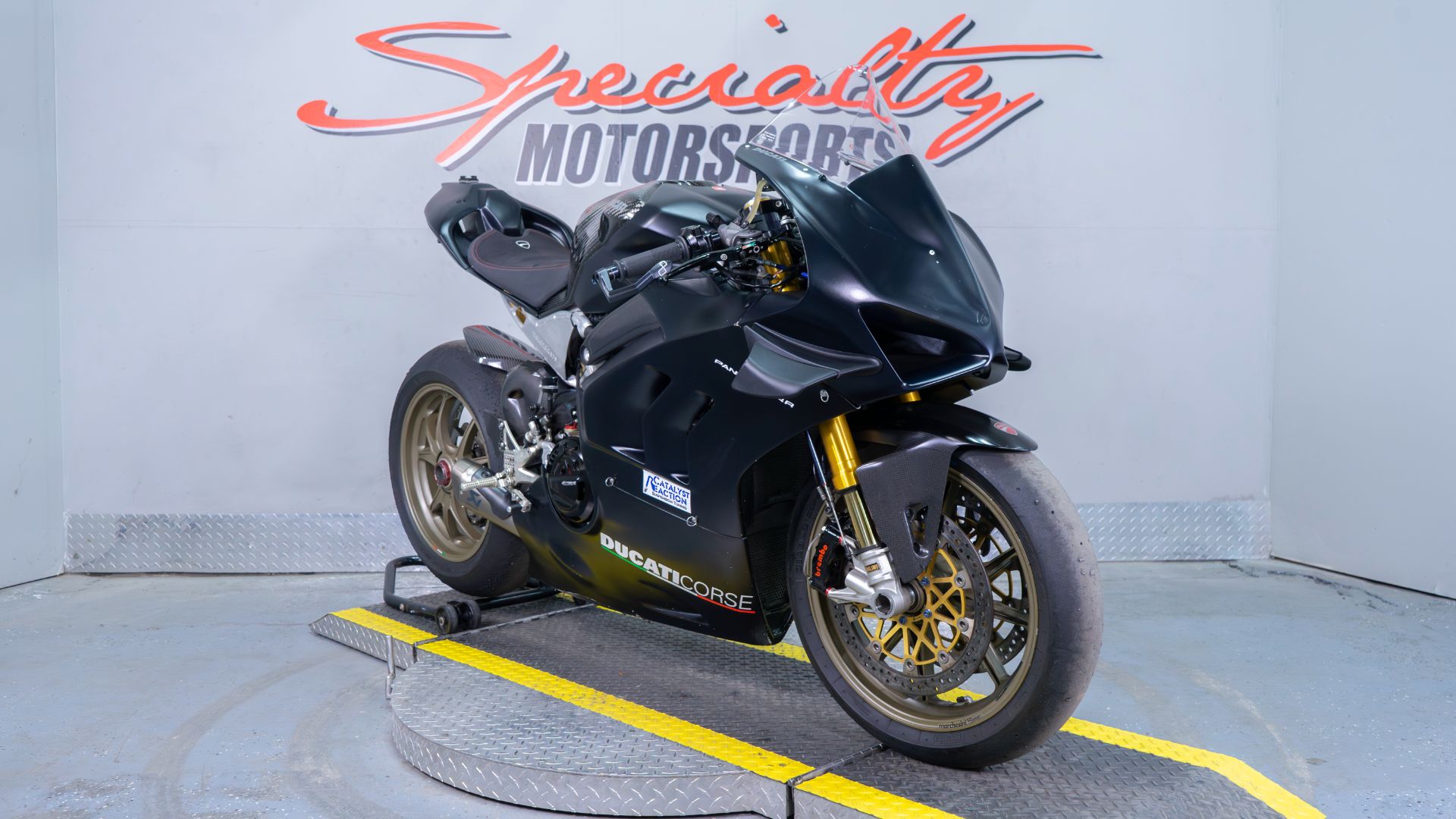

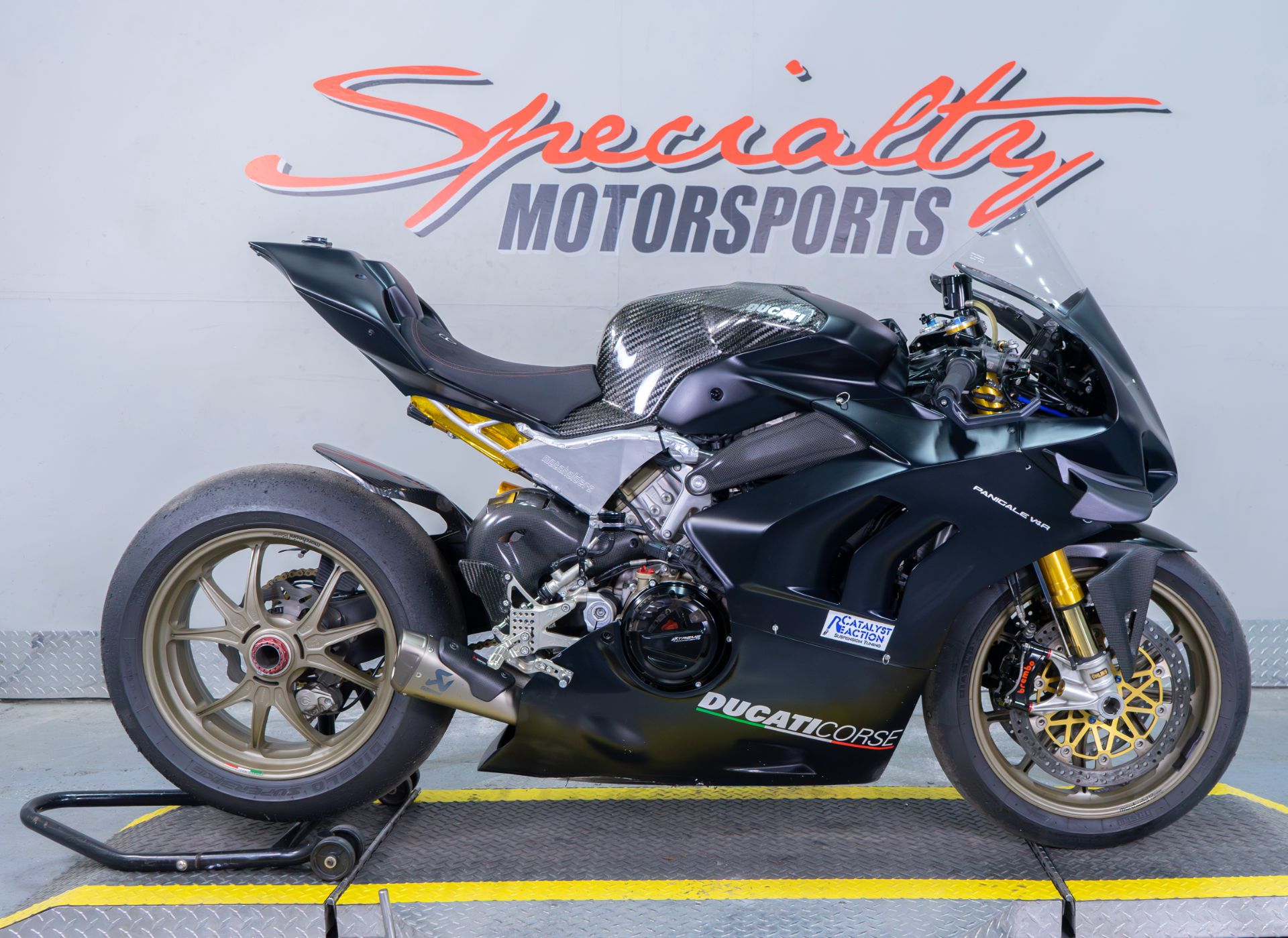

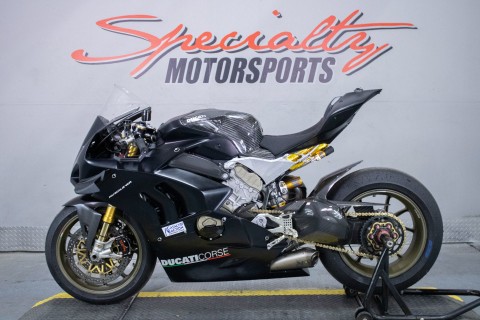

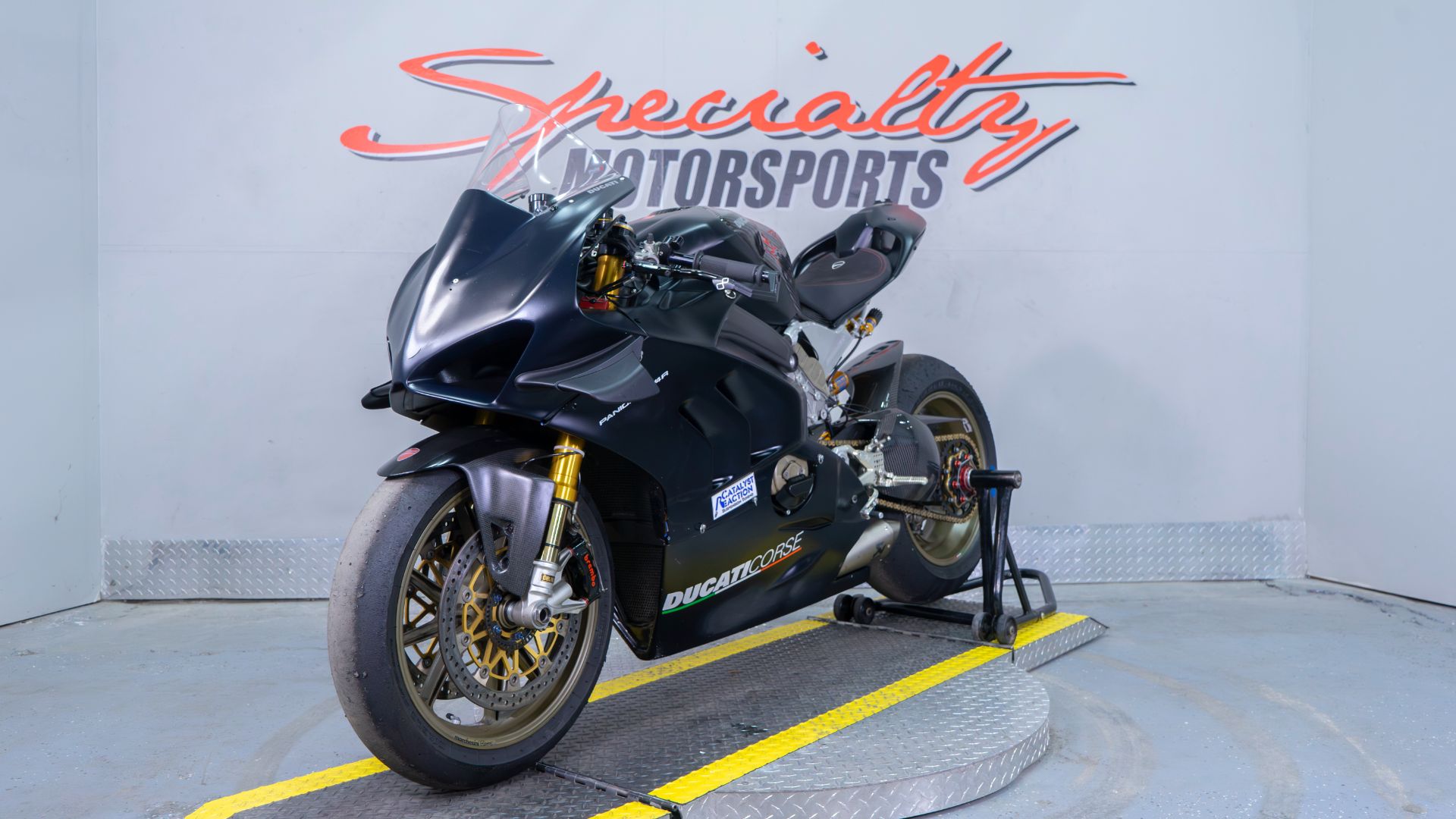

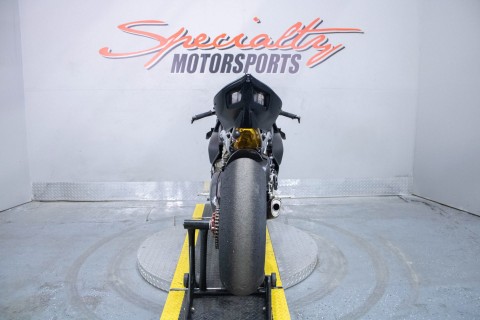

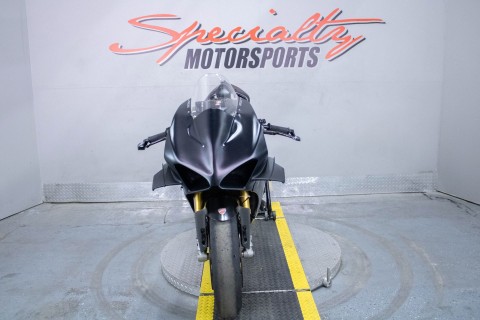

2019 Ducati Panigale V4 R for Sale

Aerodynamic Package

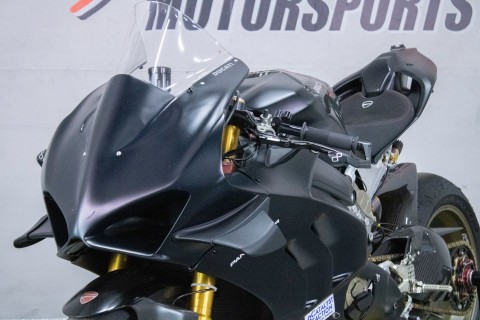

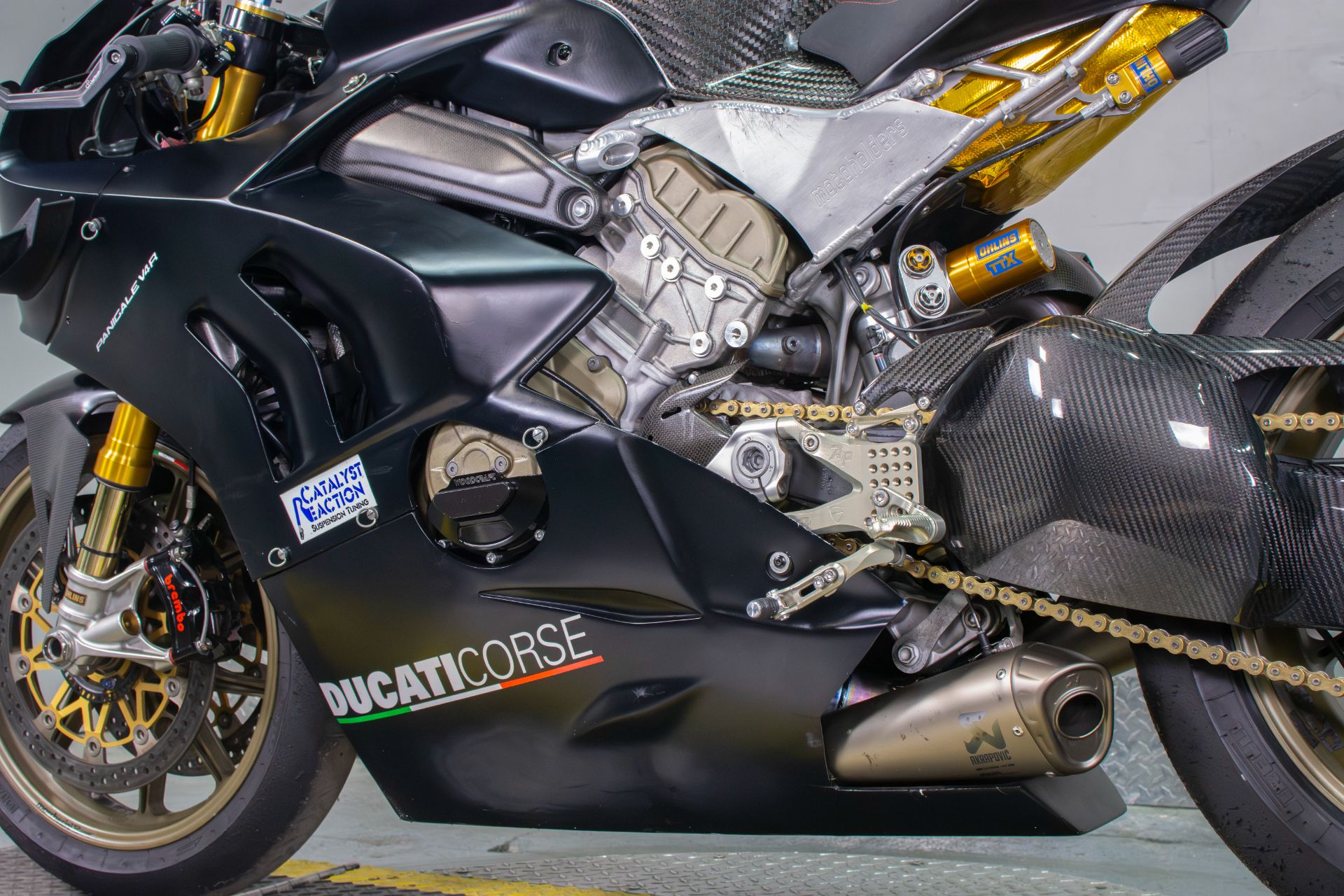

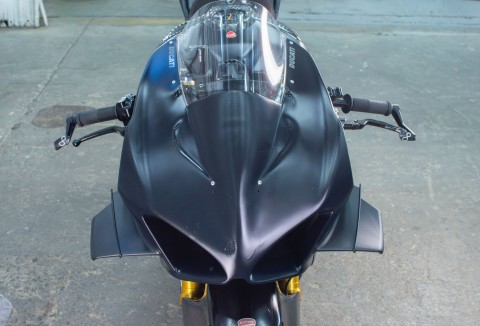

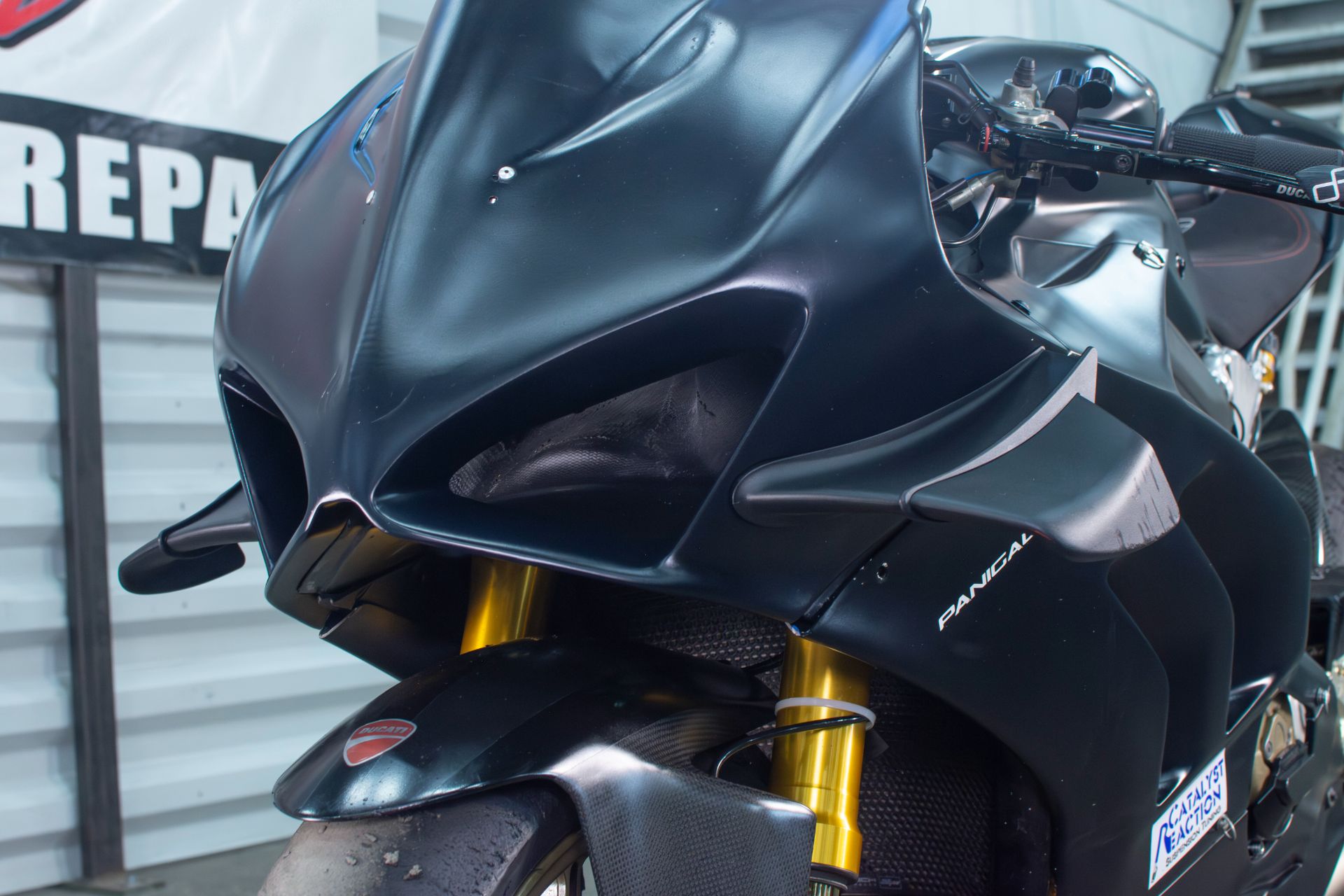

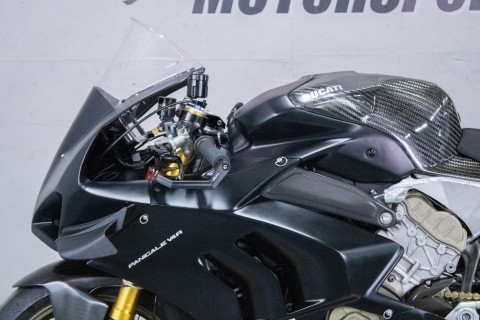

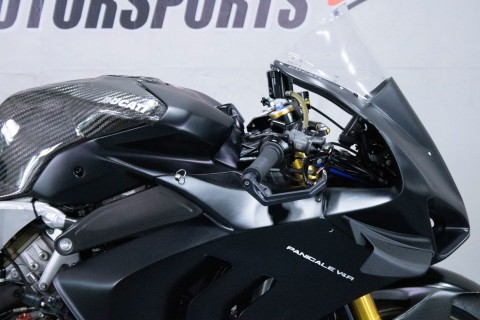

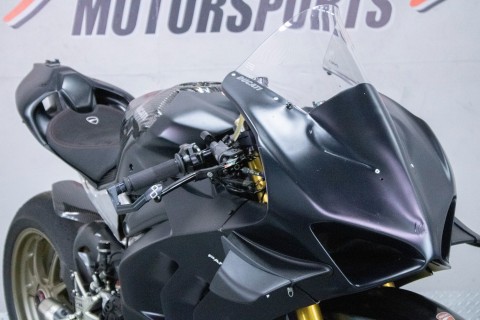

• LARGER WINDSCREEN, HEADLIGHT FAIRING, AND SIDE FAIRINGS: The windscreen is combined with a new, wider headlight fairing, both in height and laterally (+ 15 mm per side) in the area known as “arm-shield” to increase the shielding of arms and shoulders of the rider in a straight line, with a consequent reduction in aerodynamic resistance. The side fairings have been significantly widened (+ 38 mm per side) with the double objective of reducing the air impact on the rider and maximising the efficiency of the aerodynamic appendices.
• AERODYNAMIC APPENDICES: The trapezoidal single-element monoplan cowling has a tapered profile from the root to the end. The cowling performance is increased thanks to the insertion of the “strake”, a longitudinal bulkhead, and the end element called “winglet”, which insulates the air flows that run on its surface.
• EFFECTS ON RIDING: This dynamic behaviour, against a minor increase in steering torque due to the greater stability, allows to lower the lap time, because it reduces the intervention of the electronic controls and the rider tends to keep the throttle open for a longer time and to brake later into the curve.
• SIDE EXTRACTORS: On the sides, the elegant air vents of the Panigale V4 are replaced by more efficient extractors, designed to manage the operating temperatures during the race of the more powerful engine that drives the competition Ducati Panigale V4 R. The extractors increase the speed at which the cooling air crosses the water and oil radiators by 6% and 16%, respectively.

Chassis

• “FRONT FRAME”: The “Front Frame” of the Panigale V4 R stands out for the lightning on the machined side panels that allow to reach the stiffness target required by Ducati Corse and further reduce its weight.

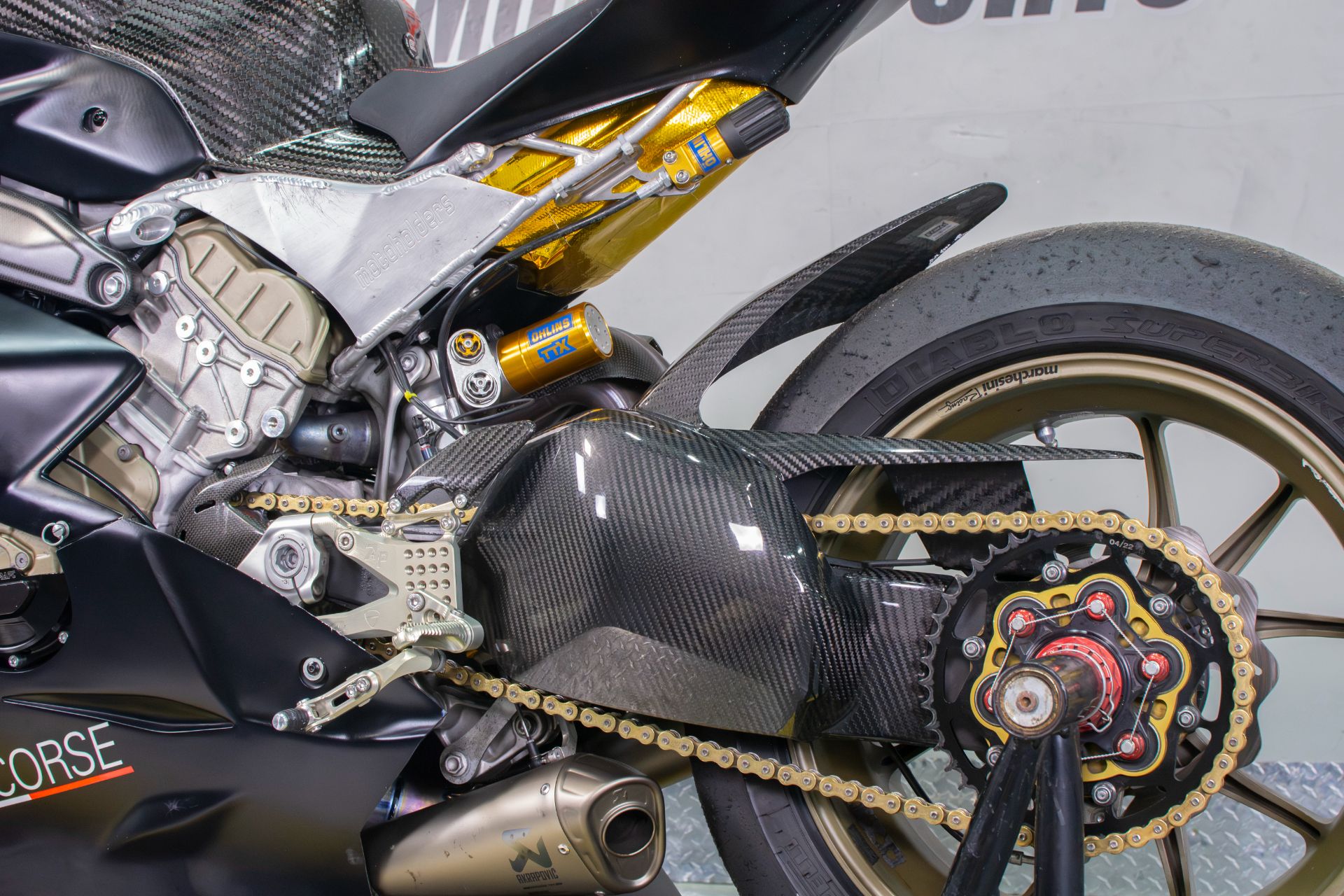

• ADJUSTABLE PIVOT: The modifications to the chassis are completed by the possibility of adjusting the height of the rear swinging arm pivot to 4 positions in steps of 2 mm. The adjustable pivot increases the adjustment possibilities to more precisely adapt the bike to the riding style and the type of track.

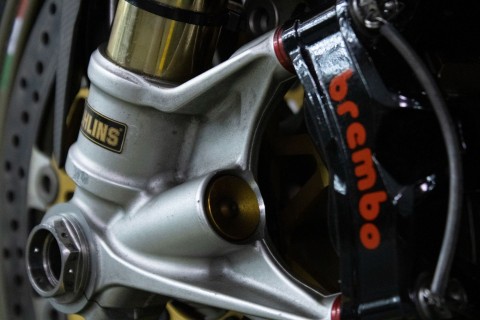

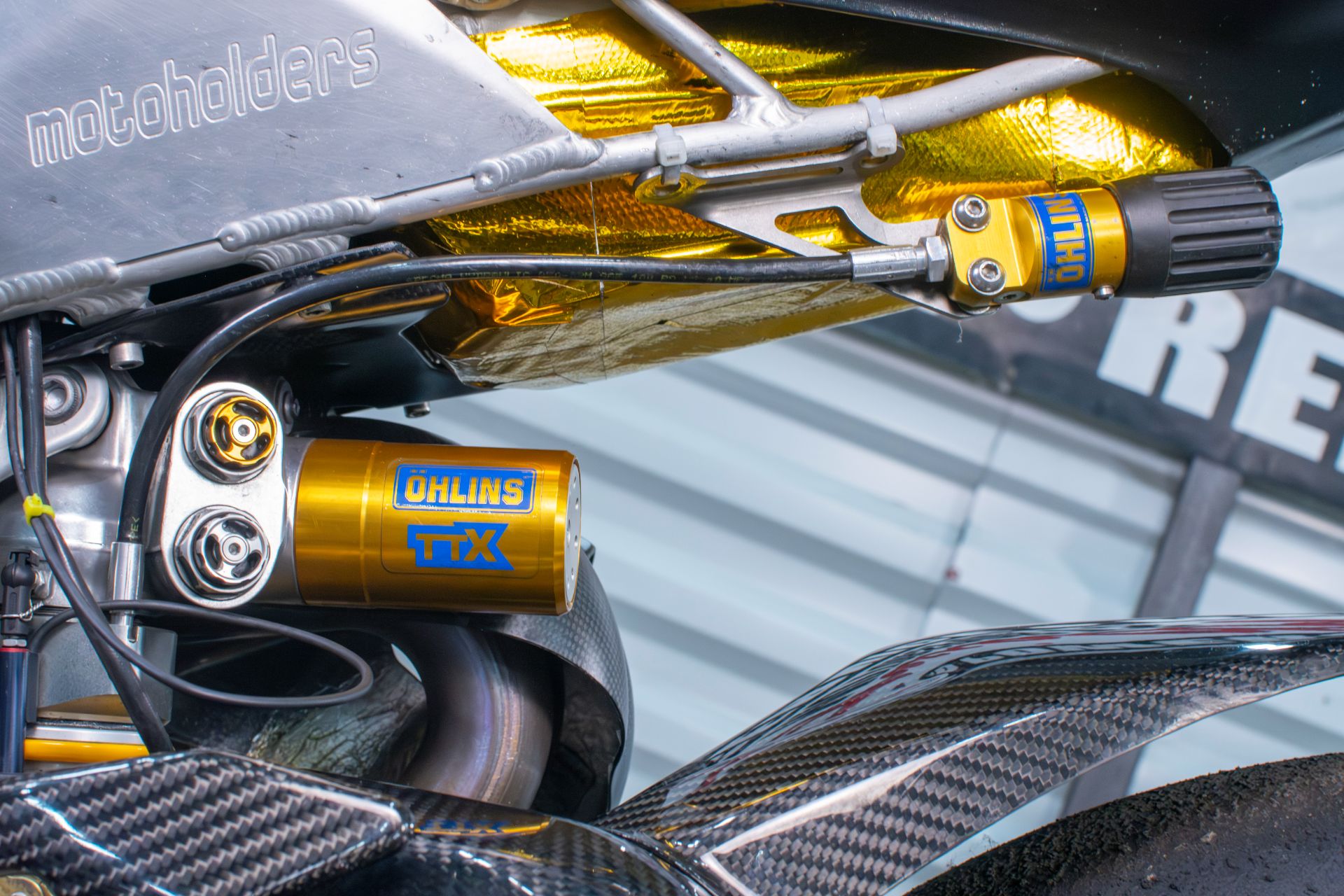

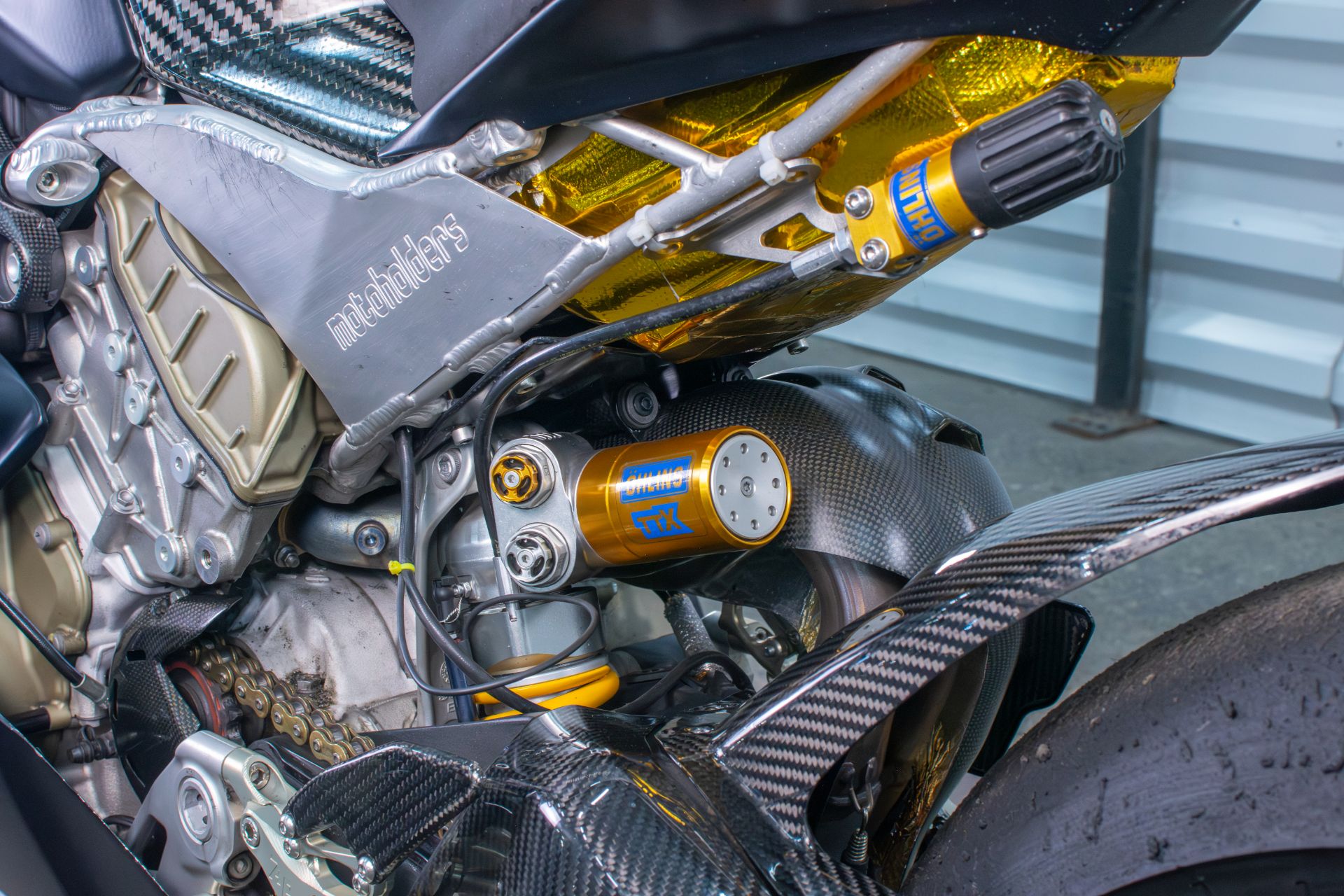

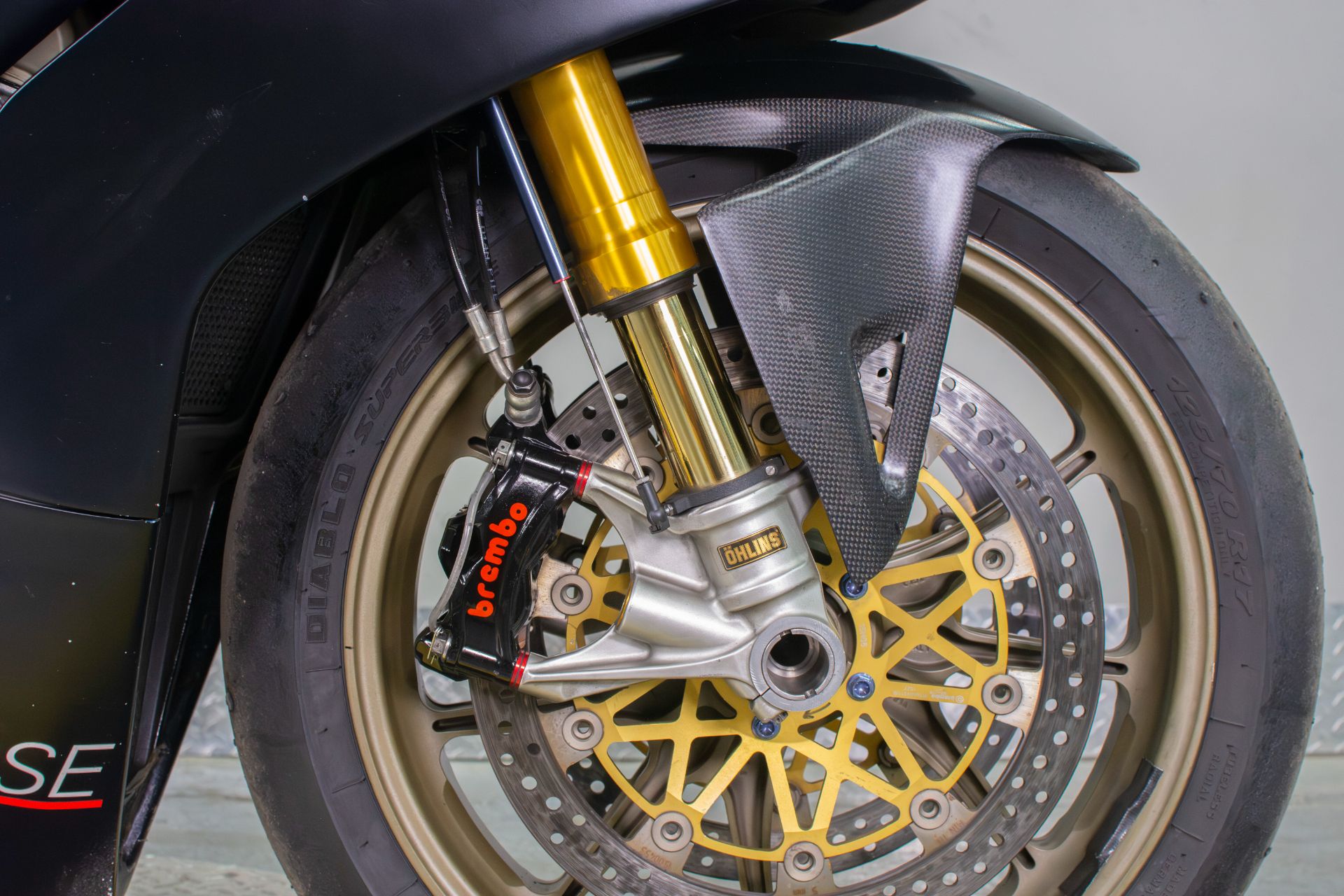

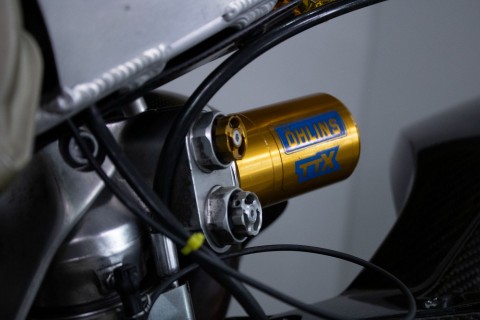

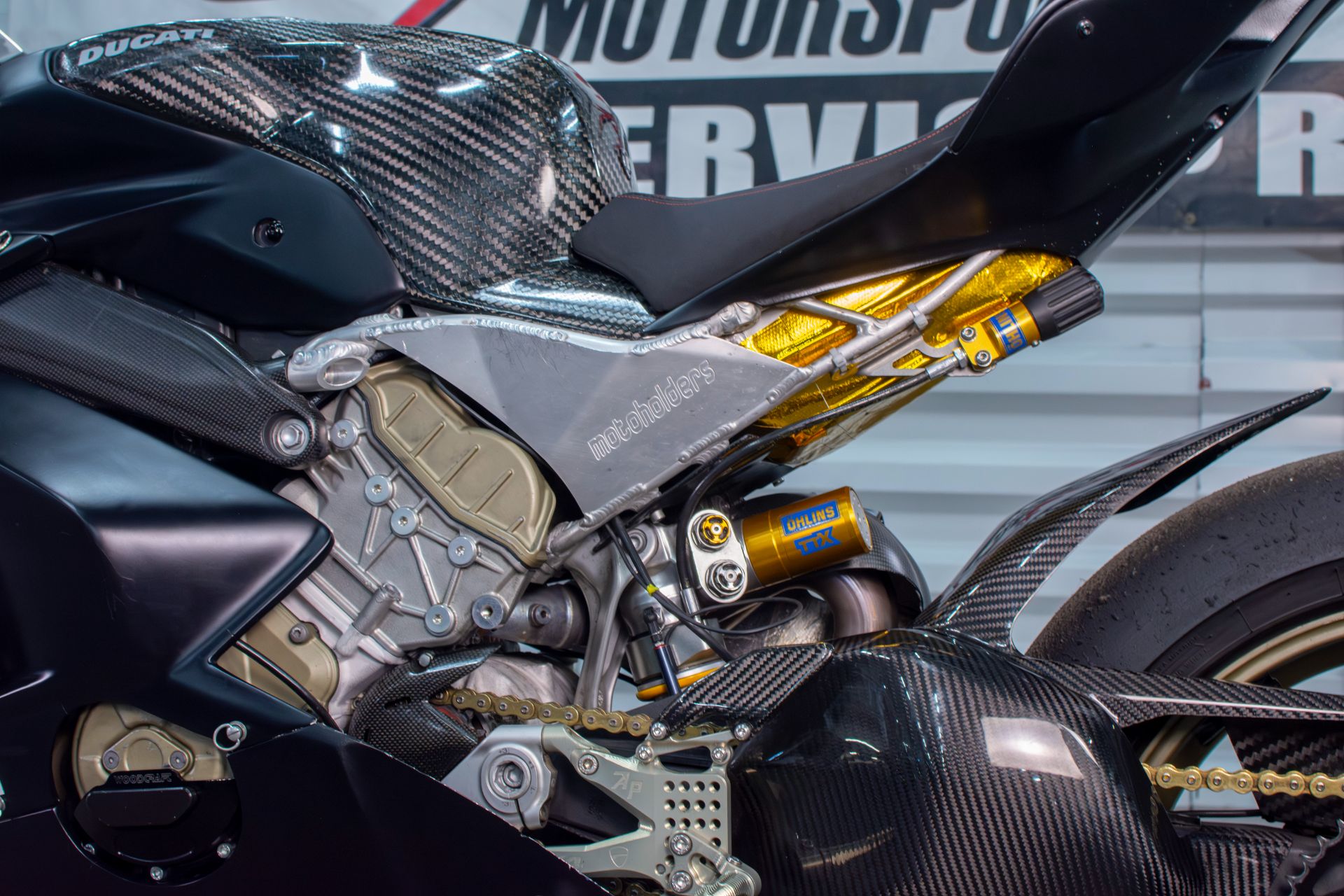

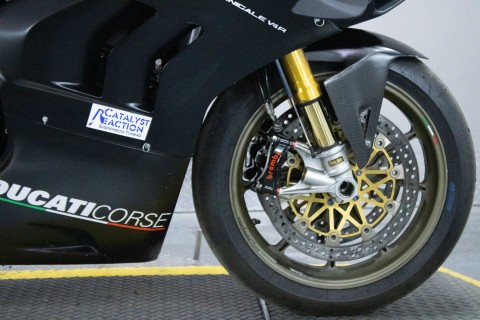

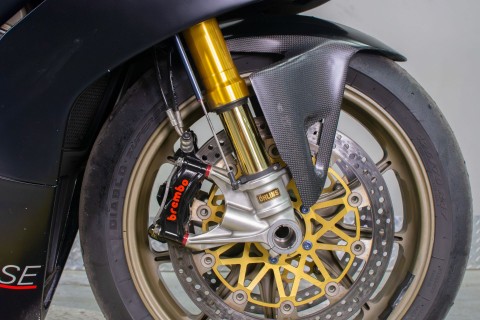

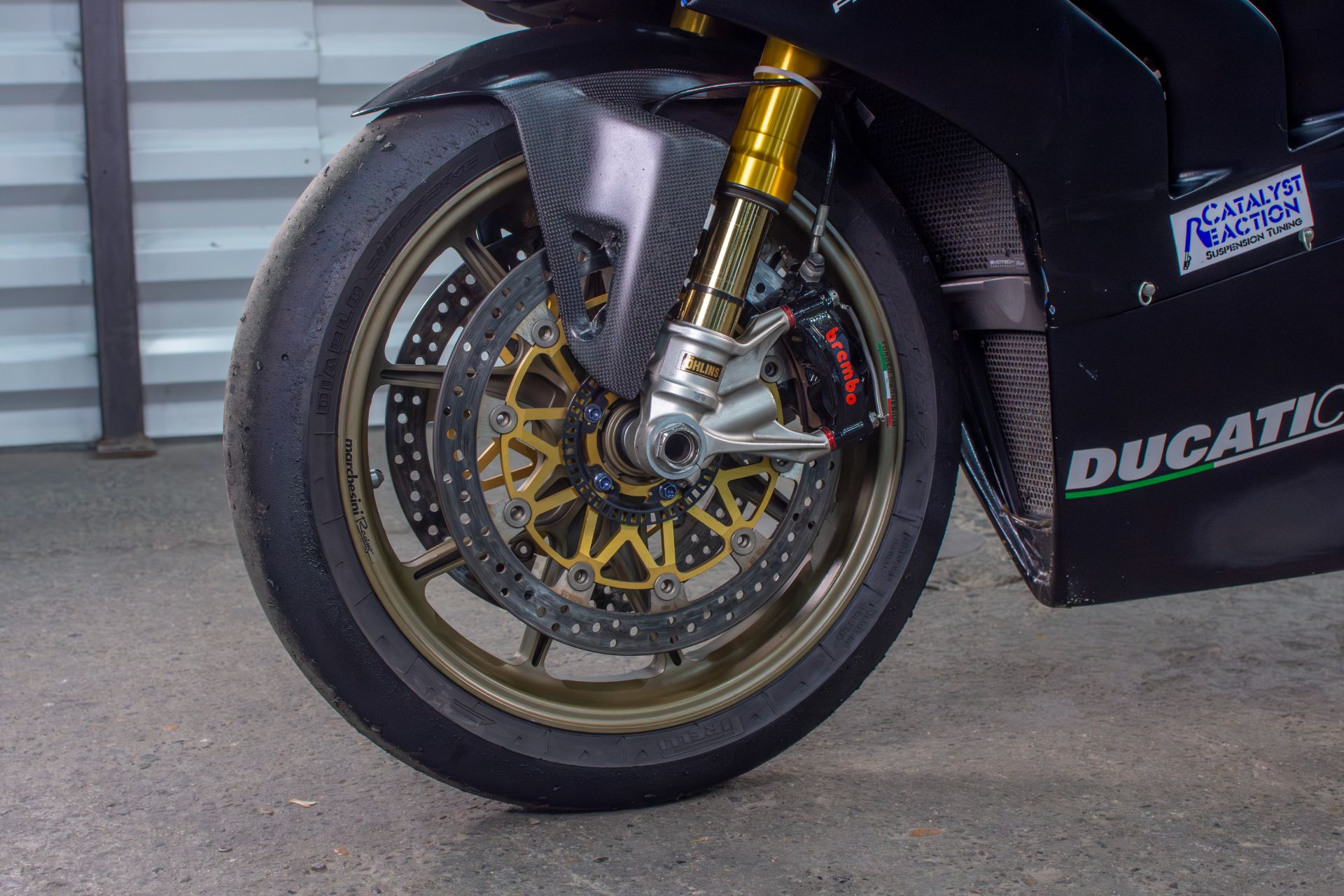

• ÖHLINS MECHANICAL SUSPENSIONS: The Panigale V4 R is exclusively equipped with the pressurised fork Öhlins NPX 25/30 of Ø 43 mm, with TiN treatment of the rods, and the damper Öhlins TTX36 on the rear, both with mechanical adjustment. Even the steering damper Öhlins leaves the electronic adjustment in favour of the mechanical one. The NPX 25/30, compared to model NIX 30 of the Panigale V4 S, uses a pressurised damping system derived from that of the racing forks Öhlins WSB. Compared to a traditional system, the pressurised system, minimising the risk of oil cavitation, offers better damping of roughness, ensuring stability and support during braking, that for the rider means more feeling of the front. As it is the case for Öhlins forks used in the MotoGP, the compression damping takes place in the left rod and uses a Ø 25 mm diameter piston, whereas the rebound damping in the right-hand rod uses a Ø 30 mm piston. The special design and manufacture of the fork blades allow a weight saving of 600 g compared to the forks of the Panigale V4 S.

Electronics

• ELECTRONIC PACKAGE: The Panigale V4 R is equipped with the latest generation electronic package, the one of the Panigale V4, that manages all riding phases, based on the use of the 6-axis inertial platform by Bosch (6D IMU – Inertial Measurement Unit), suitably reviewed in the logic of intervention to better support the professional riders.

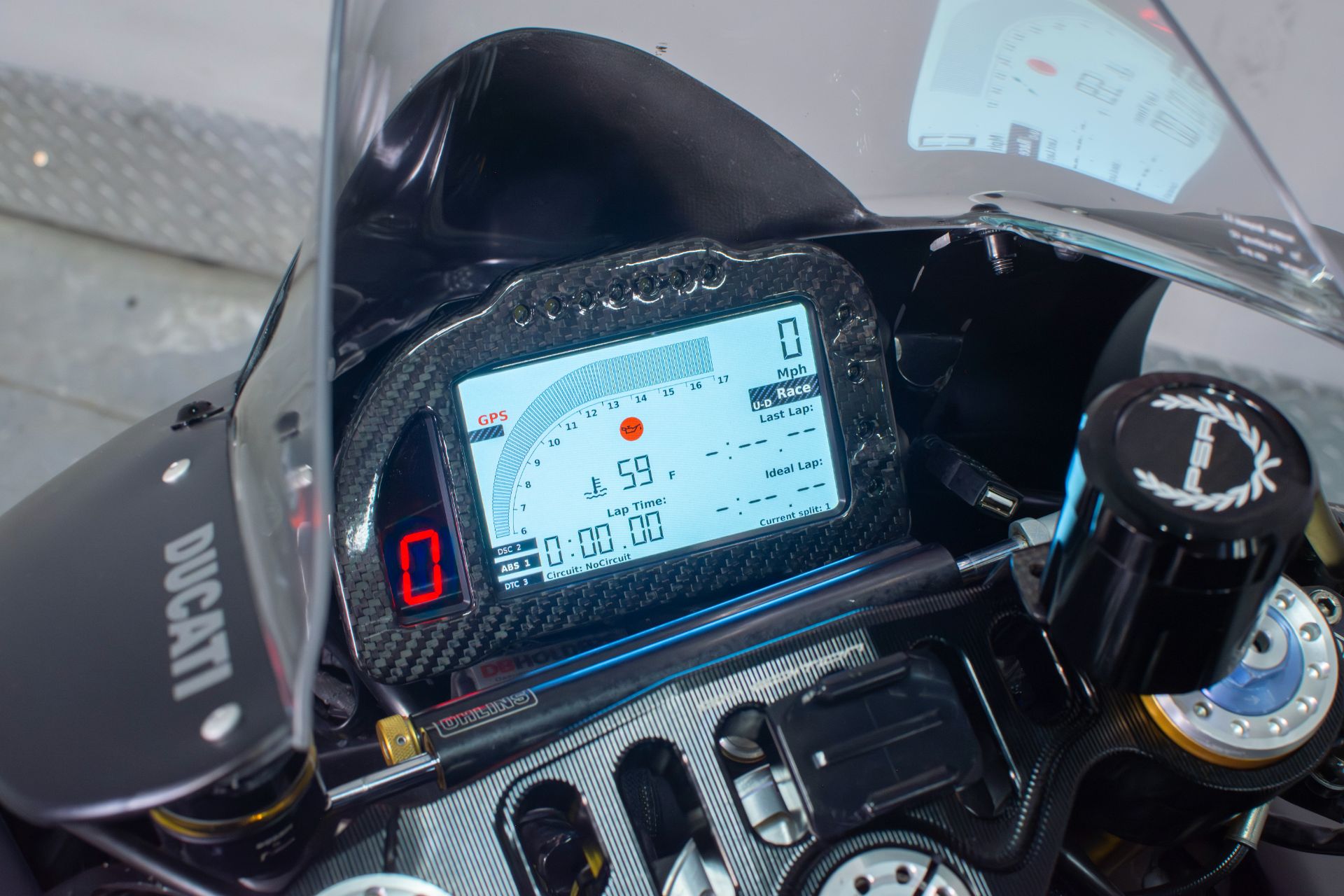

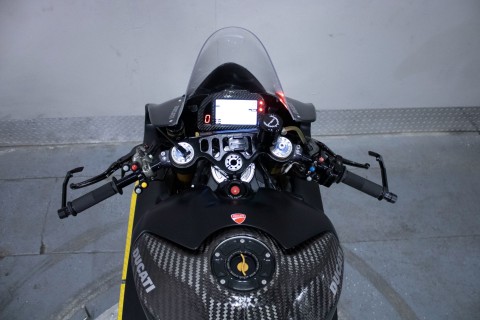

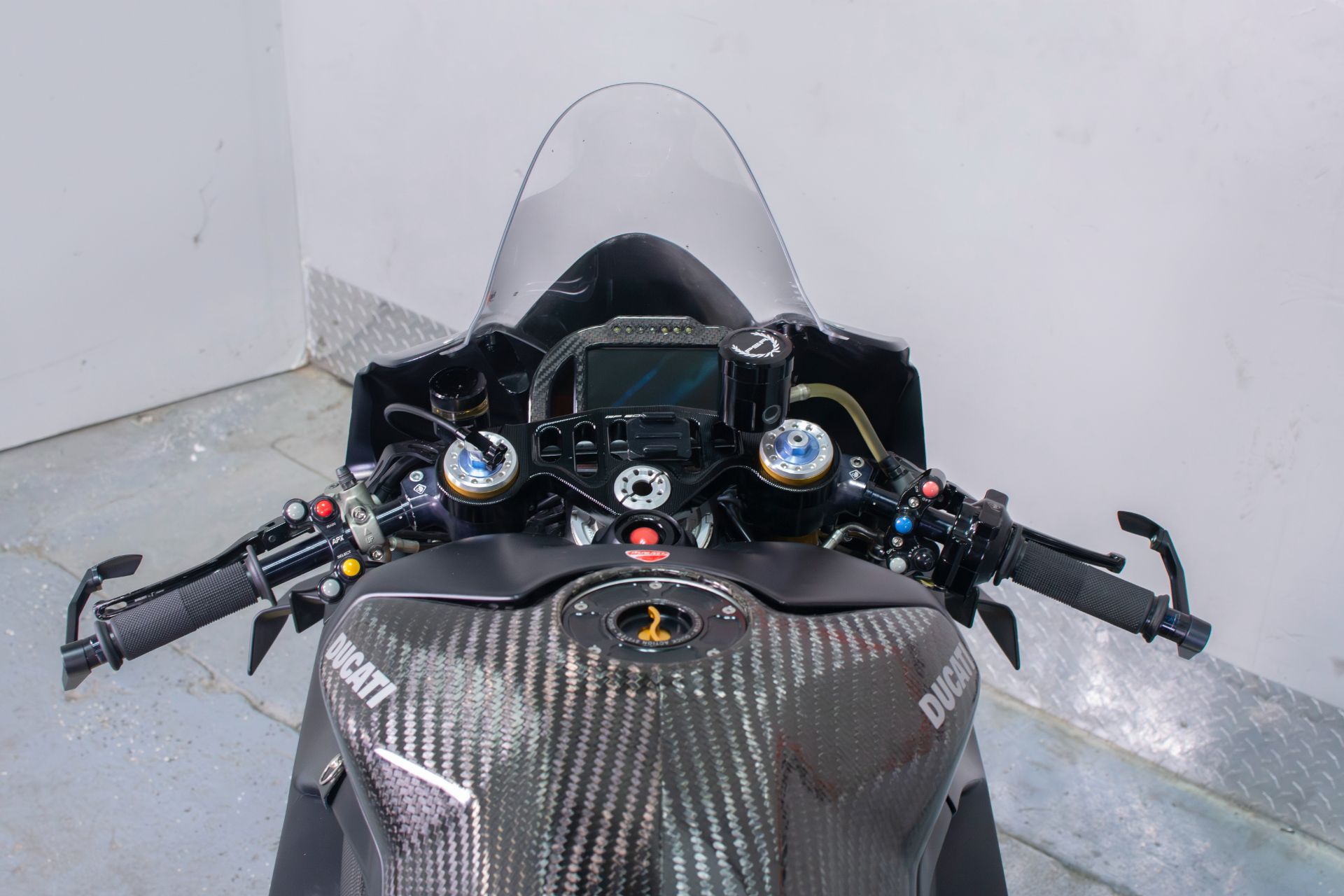

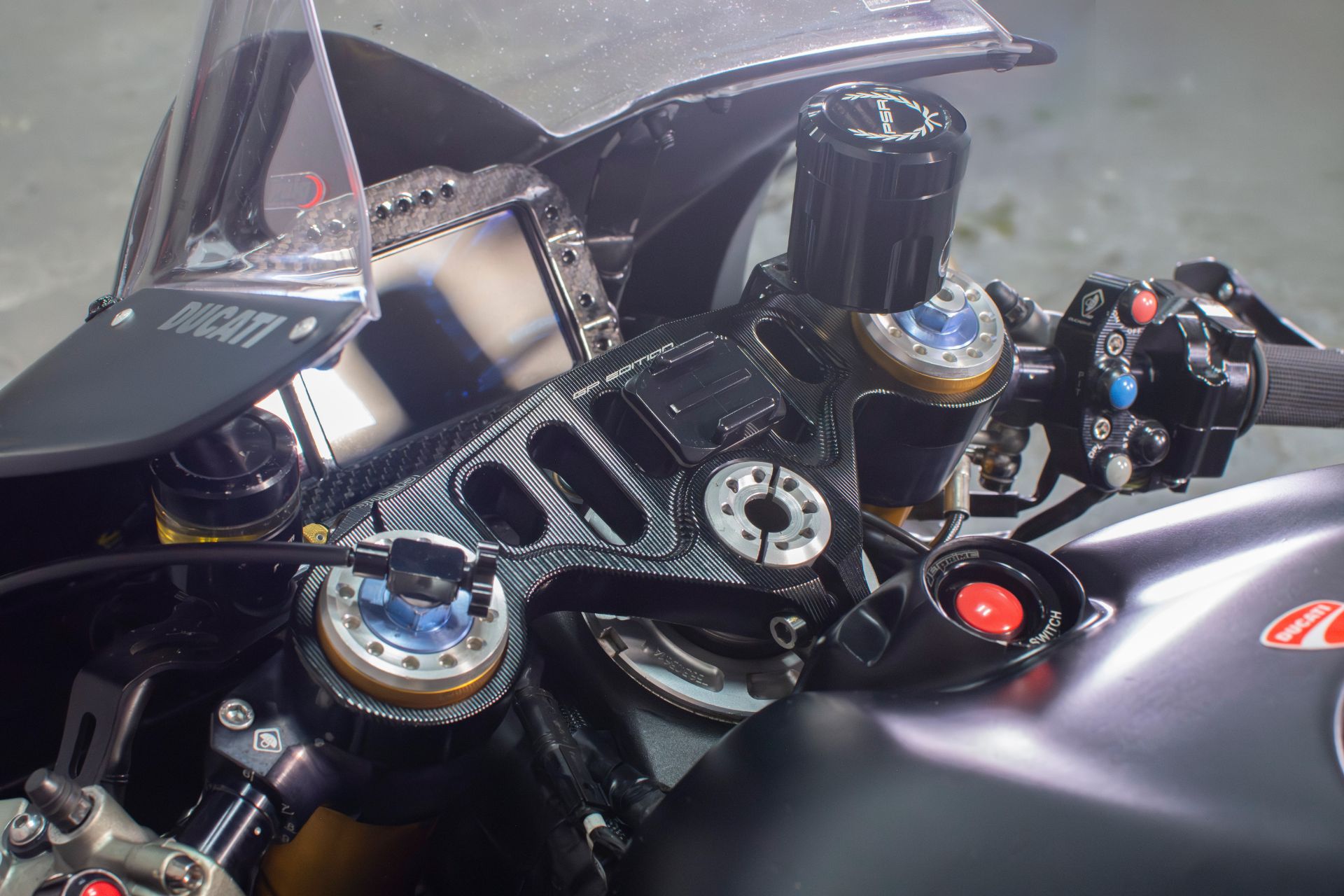

• TFT INSTRUMENTATION: The dashboard is dominated by the round virtual rev counter on the right. Desmosedici Stradale R revs are displayed within a 1,000-16,500 rpm interval by a needle gauge. Movement of the latter is accompanied by a white trail that acts as a 'shift light', changing colour from white to orange and then red as the rev limit approaches. The rider can call up two different lay-outs: 'Track' highlights the lap times and the rev counter scale makes the revs used on the track more clearly visible; 'Road', instead, replaces lap times with info on the Ducati Multimedia System (DMS), where present, and the rev scale is more appropriate for road use.
• DUCATI LAP TIMER GPS (DLT GPS): The DLT GPS of the V4 R allows to automatically measure not only the lap times, but also two splits and to display them at the end of each lap directly on the instrument panel of the bike. The system is provided with the useful “Best Lap” function, which displays for 5 seconds in a flashing way the time result if it is the best of the current lap session. For each lap, in addition to the time, the maximum RPM and the maximum speed (real speed measured by GPS) are stored, as well as the splits and the angles of bending and yawing.

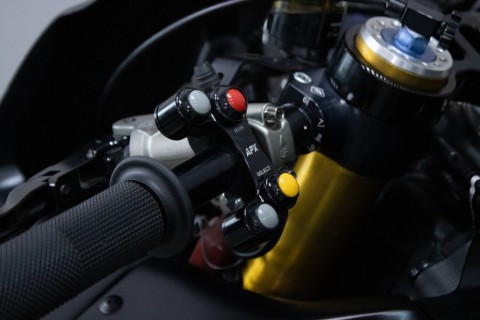

• PIT LIMITER (PIT): The Pit Limiter makes its debut on the Panigale V4 R: once enabled, by pressing the proper key on the right-hand block, it self-limits the bike speed when riding in the pit lane. The speed limit can be changed through the specific menu from a minimum of 40 km/h to a maximum of 80 km/h.

Engine

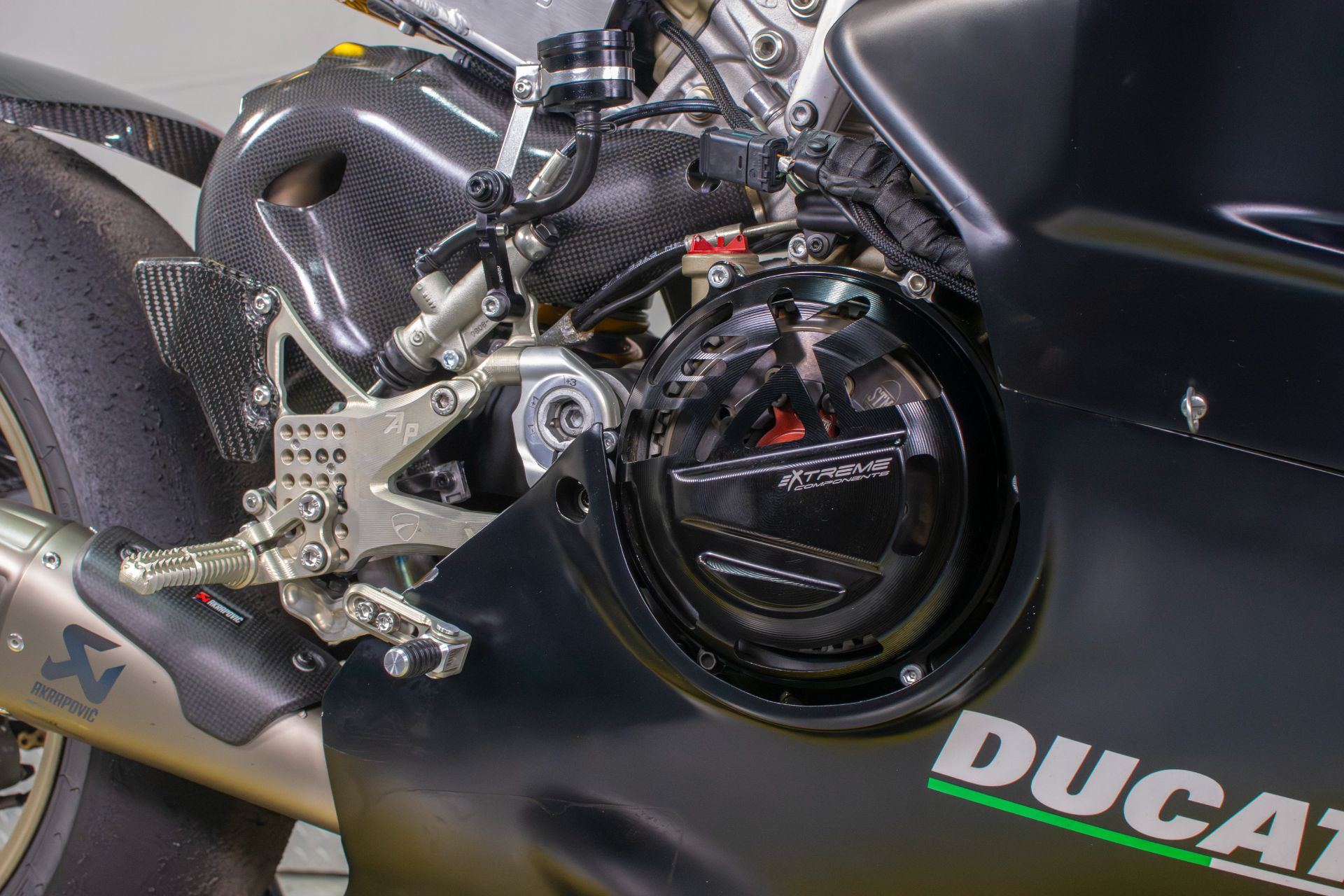

• DESMOSEDICI STRADALE R: The 1,103 cu. cm 90° V4 of the Panigale V4 is replaced by the 998 cu. cm Desmosedici Stradale R to comply with the displacement limits imposed by the WSBK championship. The reduction in displacement is obtained by keeping the bore size of 81 mm unchanged, whereas the stroke has been changed to 48.4 mm thanks to a steel forged crankshaft that rotates on main bearing shells and maintains the 70° offset layout of the crank pins.

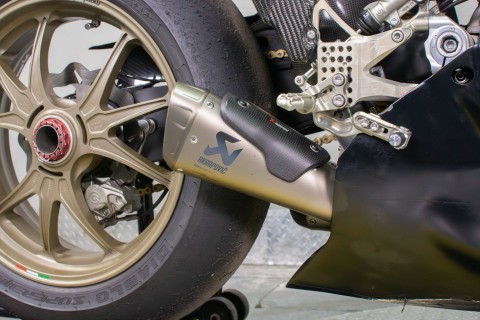

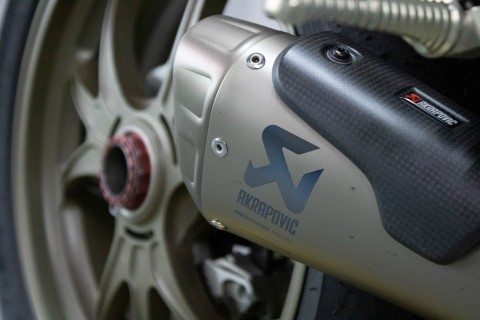

• PERFORMANCE DATA: The 998 cu. cm 90° V4 delivers 221 HP (162 kW) at 15,250 rpm and a torque of 112.4 Nm at 11,500 rpm (values referring to EU type-approval). The limiter is set to 16,000 rpm (16,500 rpm on sixth gear). By fitting the full-racing exhaust Ducati Performance by Akrapovič, the maximum power reaches 234 HP (174 kW) at 15,500 rpm and the torque reaches 119 Nm at 11,750 rpm.
• LIGHTENED COMPONENTS: The crankshaft is 1,100 grammes lighter, the shaft is driven by four titanium connecting rods with 104.3 mm wheelbase that allow a saving of 100 grammes each. Also the intake valves and the relevant semi-cones are made of titanium. The generator rotor has been lightened as well, with a weight saving of 100 grammes.
• INTAKE: This solution makes it possible to optimise cylinder filling at all rotation speeds with important benefits in terms of power and rideability. The R engine heads have been subject to a fluid-dynamic study which has resulted in the implementation of oversize intake ducts. The R engine breathes thanks to a high-permeability air filter Sprintfilter P08.

Safety Equipment

• Riding Modes, Power Modes, Bosch Cornering ABS EVO, Ducati Traction Control (DTC) EVO, Ducati Wheelie Control (DWC) EVO, Ducati Slide Control (DSC), Engine Brake Control (EBC) EVO, Auto tyre calibration

Standard Equipment

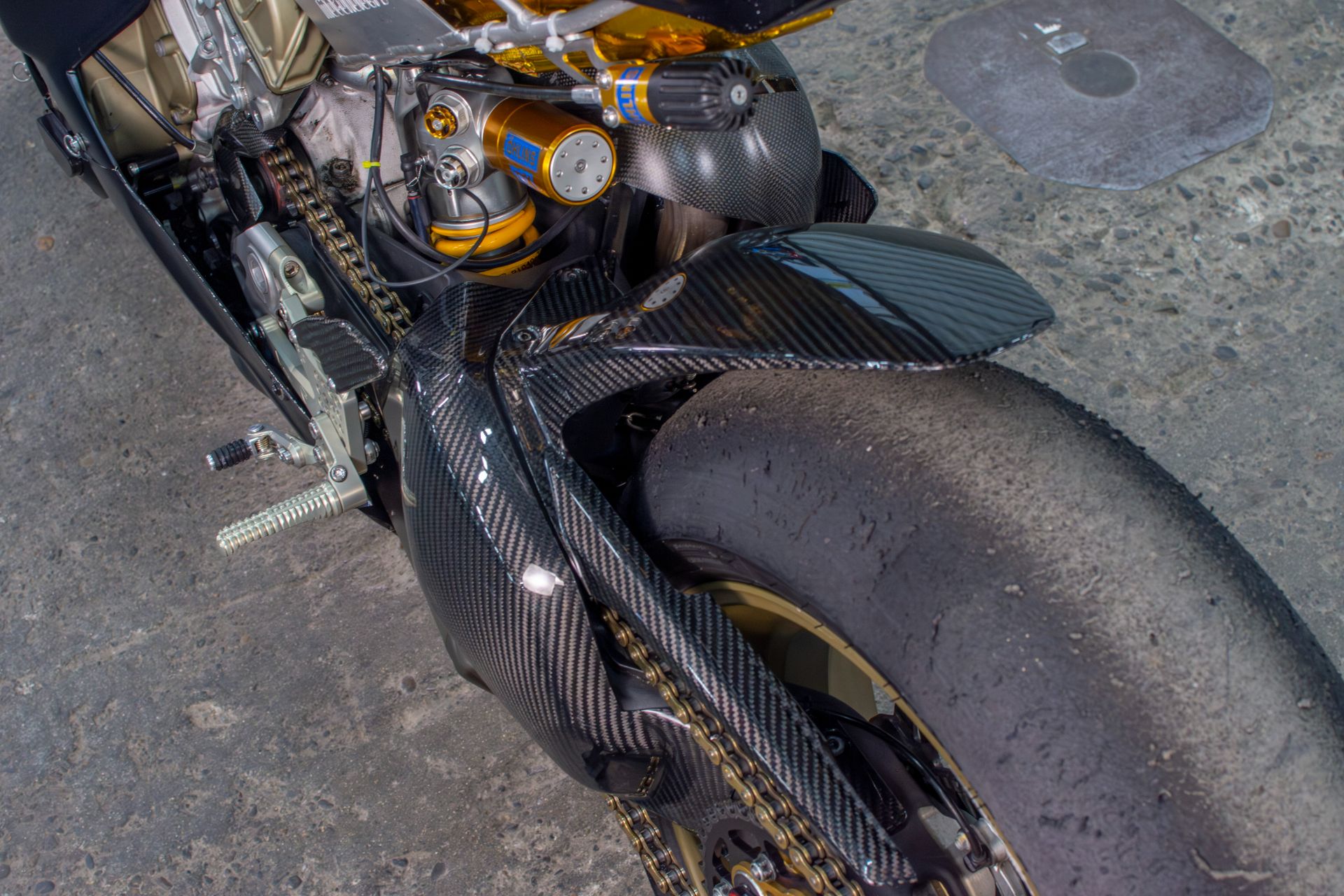

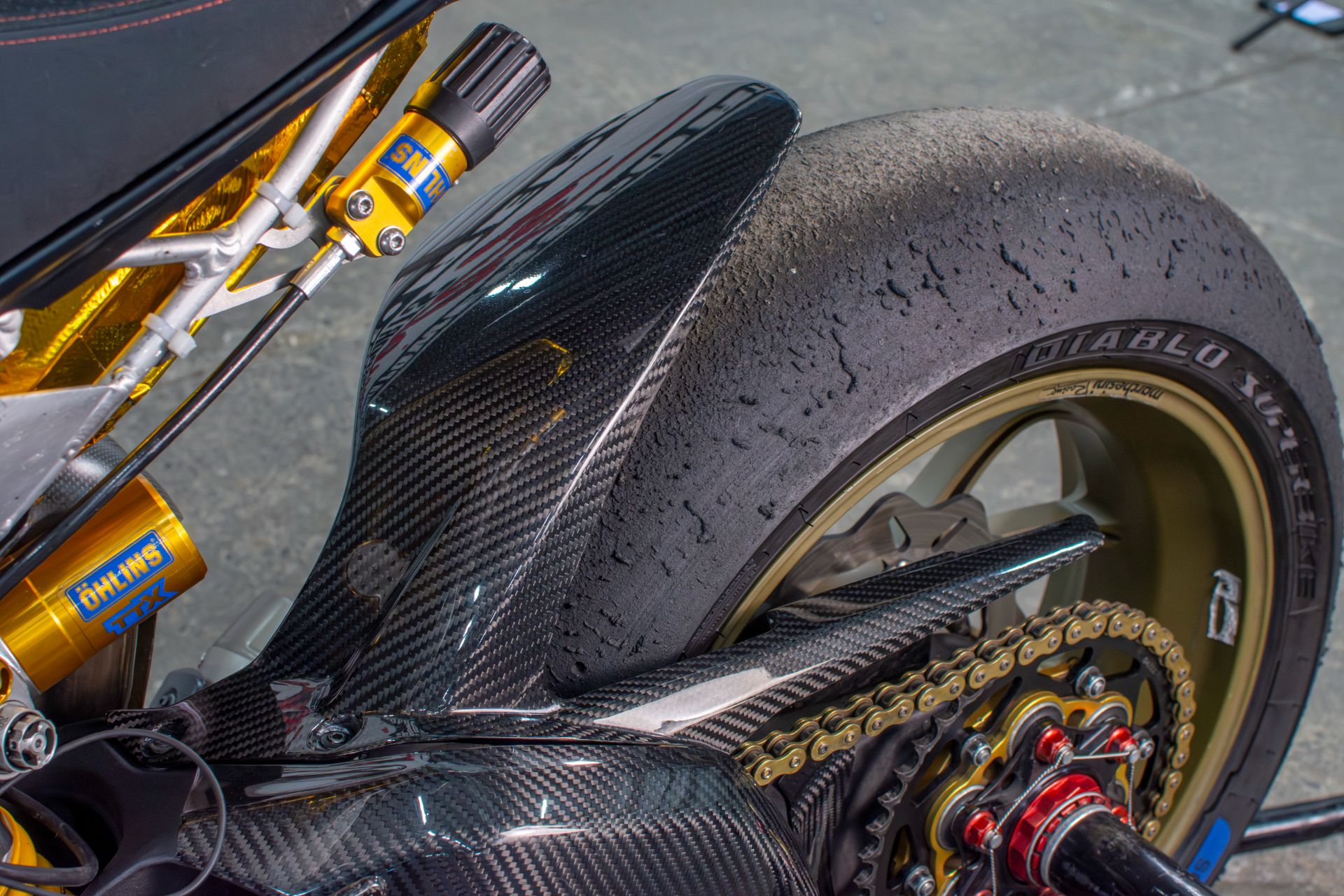

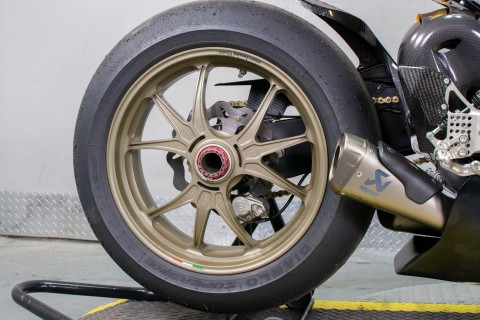

• Ducati Power Launch (DPL), Ducati Quick Shift (DQS) up/down EVO, Full LED lighting with Daytime Running Light (DRL), GPS module, Lap Timer EVO, PIT limiter, Ohlins steering damper, Quick adjustment buttons, Lithium-ion battery, Auto-off indicators, Marchesini aluminium forged wheels, Carbon fiber front mudguard, High-flow air filter
